SNS Notification Service

In this section, we will verify the configuration of Amazon SNS (Simple Notification Service). This component is responsible for sending instant alerts via Email when the system detects high-severity log errors.

1. Verify SNS Topic

After deploying the infrastructure, the system automatically created a Topic to serve as a message delivery hub.

  1. Access the Amazon SNS Console and select Topics.
  2. Confirm the existence of the Topic: fcaj-v2-log-alerts-topic.

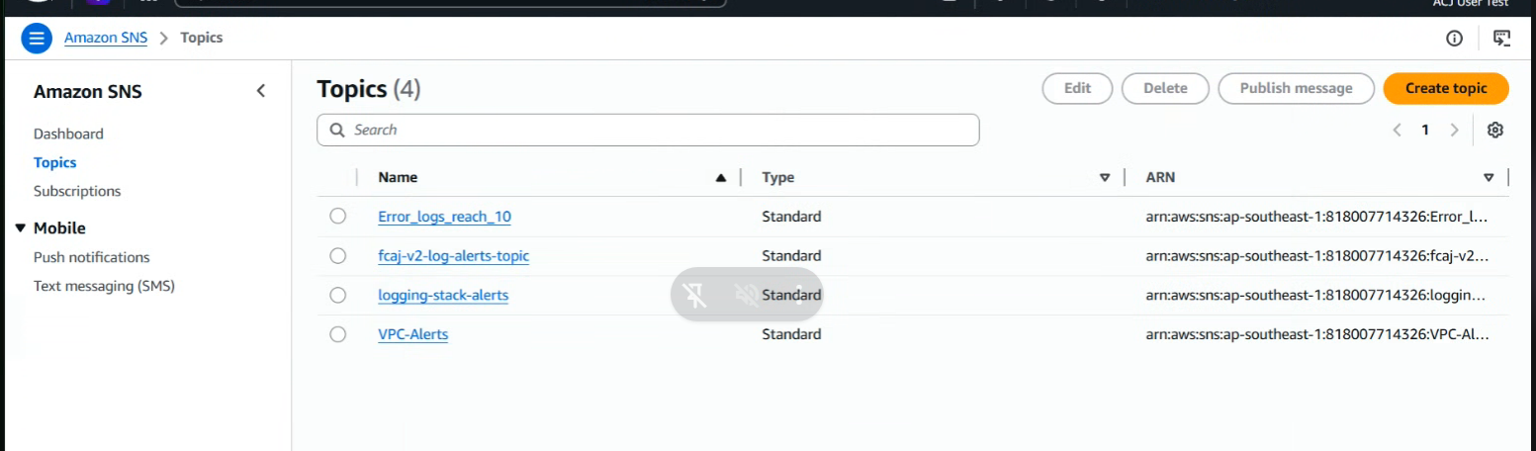

sns-topic-list

2. Subscribe to Notifications

To receive alert emails, we need to subscribe our email address to the Topic found above.

  1. Select the Topic fcaj-v2-log-alerts-topic and click Create subscription.
  2. For Protocol, select Email.
  3. For Endpoint, enter your personal email address.

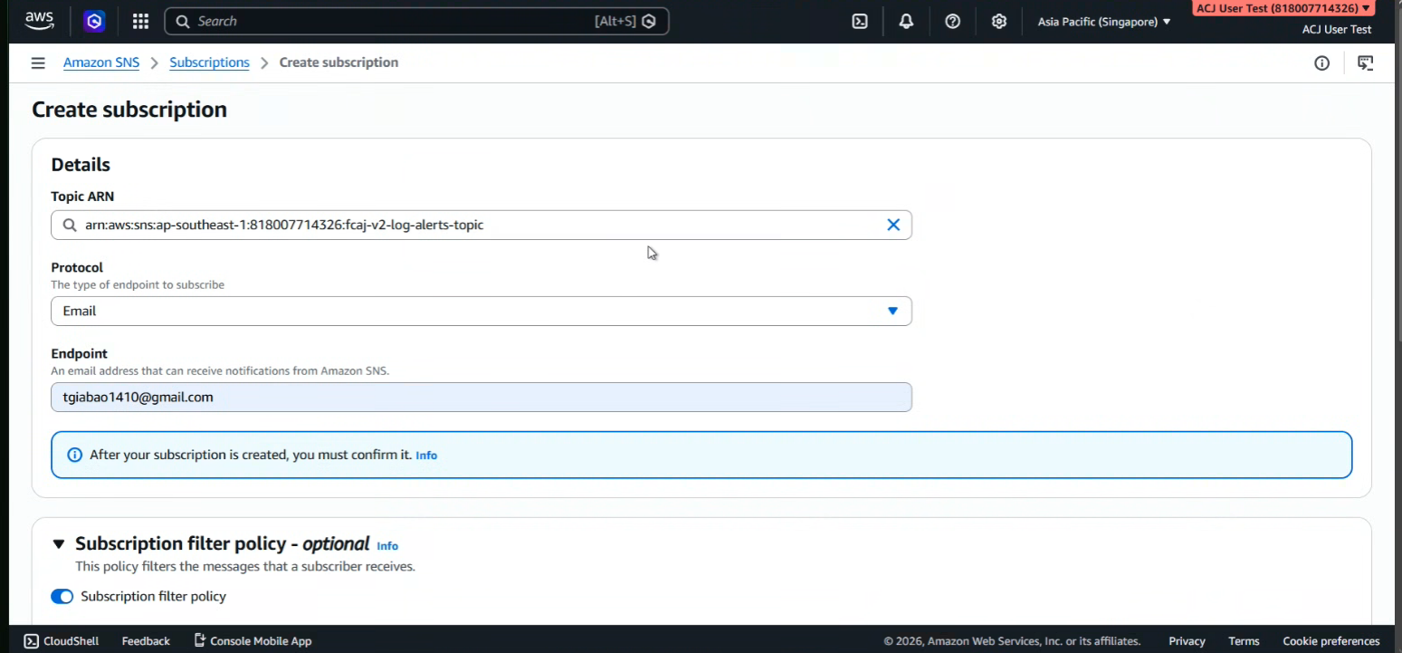

create-subscription

The Log Management system supports segregating notifications by application. We can configure the subscription to only receive notifications for a specific appId.

  • In the Subscription filter policy section, enable this feature.
  • Assume the user has the appId "app_c4f82f13".

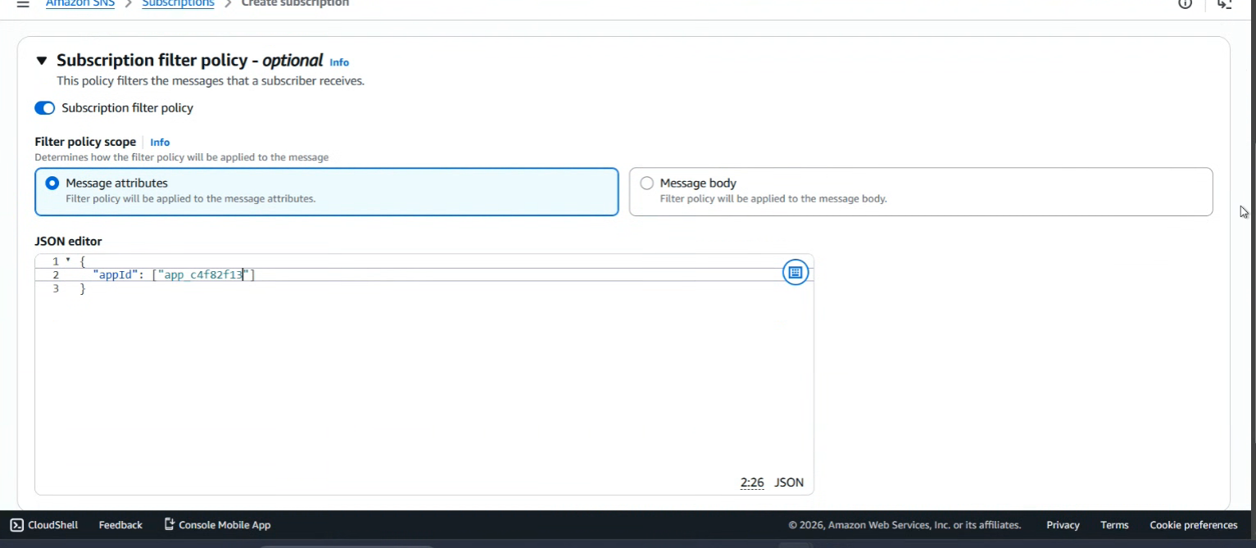

filter-policy

Once configured, click Create subscription to complete the process.

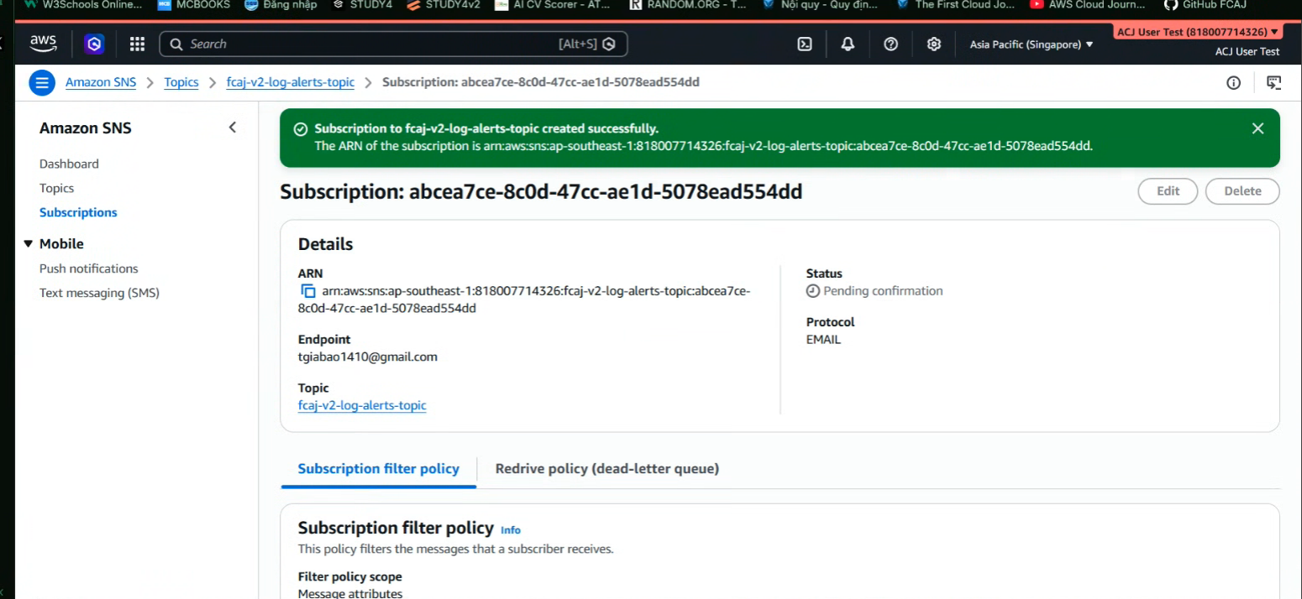

filter-policy-2

3. Verify Subscription via Email

After clicking Create subscription, your status will appear as Pending confirmation.

  1. Check the inbox of the email address you registered.
  2. Look for an email from AWS Notifications and click the Confirm subscription link.

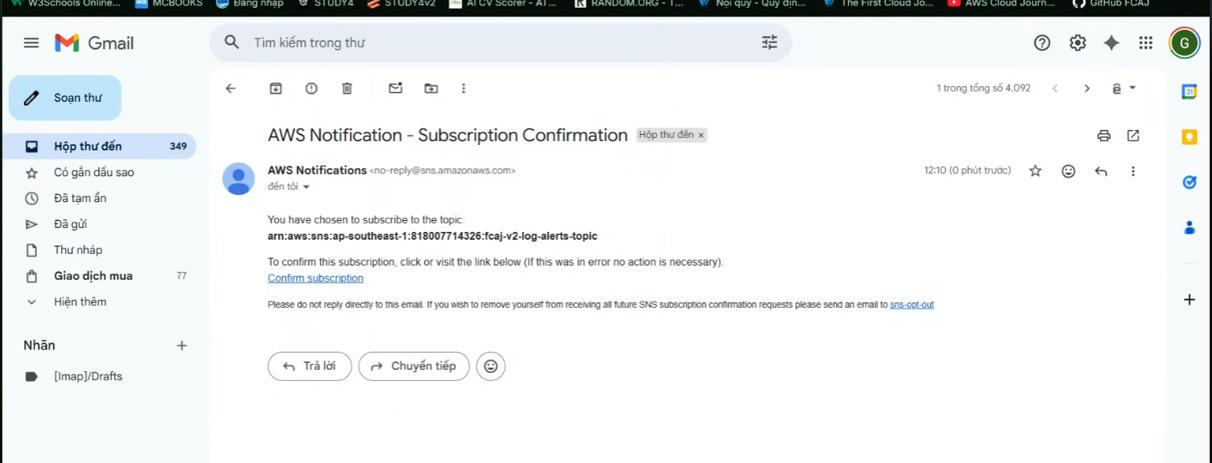

email-confirmation

Upon clicking confirmation, you will see a success message in your browser.

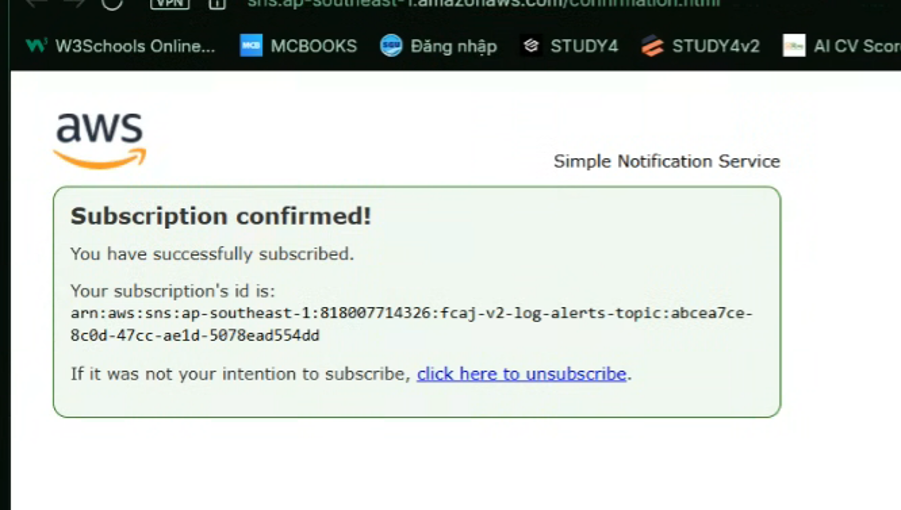

confirm-success

4. Final Status Verification

Return to the Topic details page in the SNS Console; you should see that your subscription status has changed to Confirmed.

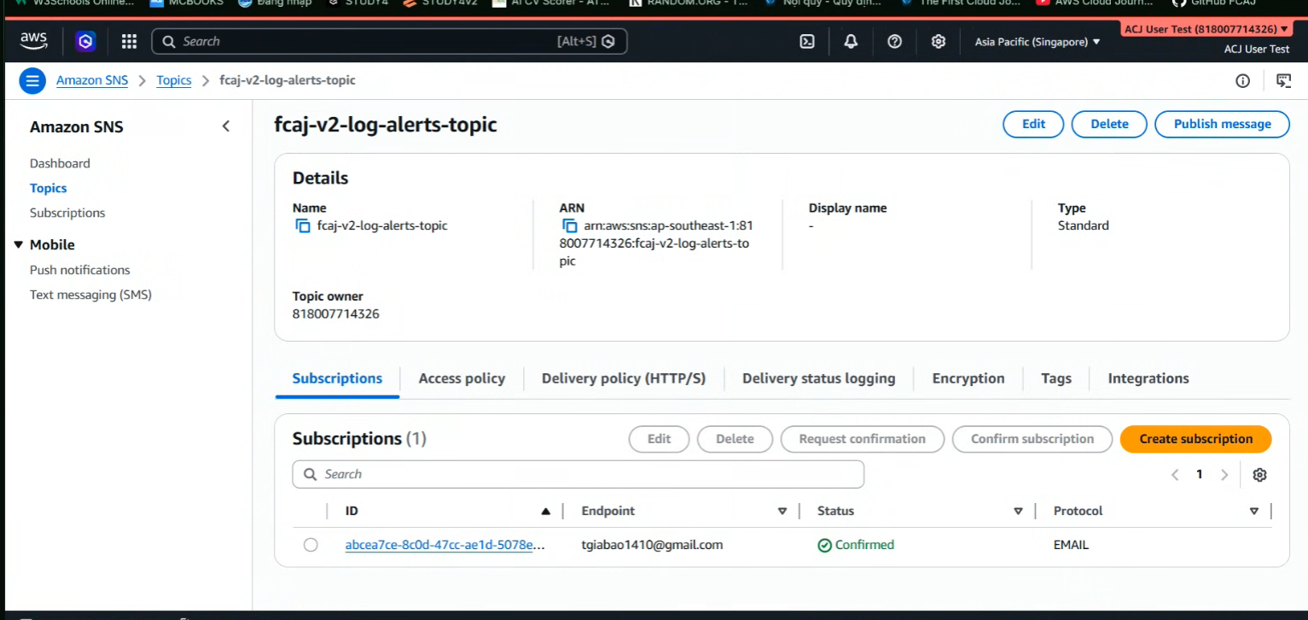

confirmed-status

Email verification is a mandatory step. If you do not perform this step, you will not receive any notifications when the system encounters an error, even though the log processing logic is still functioning.

Our alert system is now ready. In the next step, we will proceed to check and operate the main data processing flow.
